Features
- Design: API 603
- Face to face: ASME B16.10
- Flange dimension: ASME B16.5
- Test: API 598

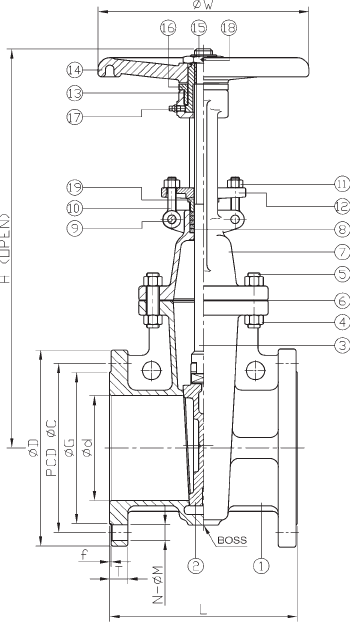

| NO. | DESCRIPTION | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A315-CF8M |
| 2 | DISC | ASTM A315-CF8M |
| 3 | STEM | ASTM A276-316 |
| 4 | NUT | ASTM A194-8 |
| 5 | STUD | ASTM A193-B8 |
| 6 | GASKET | PTFE |
| 7 | BONNET | ASTM A351-CF8M |
| 8 | PACKING | PTFE |
| 9 | PIN | AISI 316 |
| 10 | EYE BOLT | ASTM A193-B8 |
| 11 | NUT | ASTM A194-8 |
| 12 | GLAND FLANGE | AISI 304 |
| 13 | STEM BUSHING | A439 D2C |
| 14 | HANDWHEEL | ASTM A536 60-40-80 |
| 15 | HANDWHEEL NUT | AISI 304 |
| 16 | FLAT WASHER | BRONZE |
| 17 | NIPPLE | AISI 304 |
| 18 | SOCKET SET SCREWS | AISI 304 |
| 19 | GLAND | AISI 304 |
| NPS | d | G | C | D | L | H | W | T | f | N | M | Wt./Lbs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2” | 0.5 | 1.37 | 2.37 | 3.54 | 4.25 | 7.70 | 4.72 | 0.44 | 0.08 | 4 | 0.63 | 7.1 |
| 3/4” | 0.75 | 1.69 | 2.75 | 3.94 | 4.61 | 8.33 | 4.72 | 0.44 | 0.08 | 4 | 0.63 | 8.8 |
| 1” | 1 | 2.00 | 3.13 | 4.33 | 5.00 | 8.92 | 4.72 | 0.44 | 0.08 | 4 | 0.63 | 11.5 |
| 1-1/2” | 1.50 | 2.87 | 3.87 | 4.92 | 6.50 | 11.71 | 7.87 | 0.58 | 0.08 | 4 | 0.63 | 18.7 |
| 2” | 2 | 3.63 | 4.75 | 5.91 | 7.01 | 14.09 | 7.87 | 0.64 | 0.08 | 4 | 0.75 | 27.3 |
| 2-1/2” | 2.5 | 4.13 | 5.5 | 7.09 | 7.5 | 15.2 | 7.87 | 0.7 | 0.08 | 4 | 0.75 | 36.4 |
| 3” | 3 | 5 | 6 | 7.48 | 8 | 18.31 | 9.84 | 0.77 | 0.08 | 4 | 0.75 | 50.7 |
| 4” | 4 | 6.19 | 7.5 | 9.06 | 9 | 21.81 | 9.84 | 0.96 | 0.08 | 8 | 0.75 | 82.7 |
| 5” | 5 | 7.31 | 8.5 | 10.04 | 10 | 26.77 | 11.81 | 0.94 | 0.08 | 8 | 0.89 | on request |
| 6” | 6 | 8.5 | 9.5 | 11.02 | 10.5 | 28.82 | 11.81 | 1.02 | 0.08 | 8 | 0.89 | 130.1 |
| 8” | 8 | 10.63 | 11.75 | 13.58 | 11.5 | 36.73 | 13.78 | 1.14 | 0.08 | 8 | 0.89 | 201.7 |
| 10” | 10 | 12.70 | 14.25 | 15.94 | 13 | 43.97 | 15.75 | 1.20 | 0.08 | 12 | 1 | 320.8 |
| 12” | 12 | 15.00 | 17.00 | 19.09 | 14 | 52.45 | 17.72 | 1.27 | 0.08 | 12 | 1 | 446.4 |
*Other sizes available upon request.
